The Ultimate In Sound Reduction And Energy Efficiency!

Whether you are considering installing new double glazed windows in your home or business or need to replace a damaged double glass panel, Jim’s Glass is here to help. Our team of qualified and accredited glaziers are fully versed in the specification and installation of double glazed units, and they will guide you through the process.

Double Glazed Glass Replacement

Offering a comprehensive glass replacement service, Jim’s Glass can respond to your broken double glazed glass situation fast, effectively, and hassle-free. To find out more about our glass replacement service, including making an insurance claim click here.

New Double Glazing for your Home Or Business

Double glazing is the ultimate in sound reduction and energy efficiency. Double glazing is based on a modular construction known as an Insulation glass unit (IGU). These modules provide a robust and cost effective method of providing double glazing glass for your home, office or shop delivering the sound reduction and energy efficiency that you need.

Double & Triple Glazed Modular Units

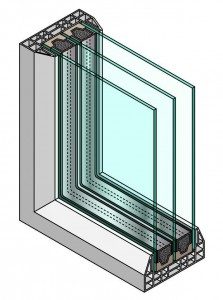

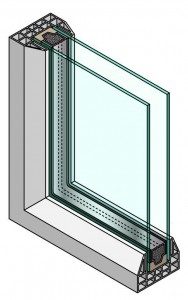

With a double glazed installation the IGU has two glass panes. Triple glazed installations have three panes of glass and is known as a Triple Glazed IGU.

Single Glazed                                Double Glazed                           Triple Glazed

Glass panes in an IGU unit are spaced apart with a stilled layer of gas or air. The air gap is created using a metal or a polymer strip spacer. The entire unit is constructed as a sealed unit.  A drying agent is then used on the spacers to make sure that no moisture gets in.

The void in double glazed window IGU is totally sealed to form an effective temperature and noise isolator.

Argon is used to fill the insulating void space when increased sound reduction and energy efficiency is called for. Argon has a low noise and temperature conductivity that makes it the most suitable gas for this purpose.

Double Glazing Window Frame Requirements

The window frames for these double glazed windows are wider than the usual window frames. This thicker window frame ensures that the thickness of the IGU is accommodated.

Typically, 6mm to 20mm is the desired thickness for an IGU. 10mm to 12mm is the recommended thickness for thermal performance and better efficiency for energy. Sound reduction is achieved with 150mm or over for optimum results.

Experts use a wide variety of glass types: toughened, Low-E, tinted, and laminated glass. These are specially manufactured to achieve the thickness that is required. The whole system or the IGU unit is dependent on the glass type, coupled with the thickness, the airspace, as well as the type of filling determines the energy and acoustic efficiency, as well as the performance.

The Benefits Of Double Glazing

Windows that are double glazed is the ultimate choice when it comes to energy efficiency and sound reduction; its sealed air gap acting as its additional layer for insulation. This creates a thermal resistance layer that reduces the heat that escapes through the windows during the winters and cold air during the summer. The insulation that double glazed windows have lessens the stress in your cooling and heating appliance. This in turn lowers down your electrical and heating bills.

Double glazing for Thermal Comfort

Sitting beside a window, your comfort should not be affected by the outside temperature but be supported by the temperature inside the home. With double glazed windows, the outside temperature would not be easily transferred inside because of the insulation. These double glazed windows also reduce the incidence of condensation build up which in turn discourages the growth of moulds in the home.

Double glazing for Noise Reduction

When talking about sound reduction and double glazed windows, its sealed double glazing helps in reducing sound from between medium to high frequency noise. The difference in the thickness of the glass, as well as the space in between the panes, determines the effectiveness of sound reduction.

Double glazing for Security

For a homeowner’s peace of mind, double glazed windows are a safe option when it comes to home security. Being double, it is harder to break two glass panes rather than one; and in as much as added security is concerned, a homeowner can specifically ask for laminated or toughened glass to be installed on their double glazed windows.

Should I be considering Double Glazing?

• Your home is too cold in the winter and too hot in the summer
• Your monthly energy bills are getting more expensive all the time
• You feel a chill every time you walk past your home’s windows
• The glass in your windows fogs up, ice over or rattle in the wind
• Your curtains billow and blow even when your windows are closed
• Your windows are difficult to open or close
• You are renovating your house
• You want to improve the security of your home
• You want to make your home more energy-efficient
• You hear lots of noise from outside

If you can relate to any of these, it is worth calling Jim’s Glass on 131 546 and have one of our accredited glaziers come and discuss your options and do a free measure and quote.

What Is The Cost?

The cost of double glazing will depend on the make of the IGU, and the type of window frame the IGU will be glazed into. Consideration needs to be given to the entire window configuration, from the glass through to the frame when ascertaining if double glazing is right for you.

Many existing single glazed window frames will not accept the thickness and weight of a double glazed unit and, therefore, new window frames will need to be fitted, as well. This can have a considerable impact on the final cost of the project.

Options are available for improving sound and energy performance using single glazed glass that is specially manufactured to help in these areas. These single glazed alternatives are not as effective as double glazing but are considerably cheaper and can usually fit into existing conventional window frames. To find out more about single glazed noise-reducing glass, click here. To find out more about single glazed energy efficient glass, click here.

Further information on insulated glass units and double glazing can be found here
